Flow Control Performance Plastic Pneumatic Actuated Diaphragm Valve

Pneumatic Diaphragm Valve, MV302

Specifications

• 1. Size
  1. DN 15/20/25/32/40/50
• 1. Pressure Level
  1. PN 6
• 1. Body Material
  1. PVC-U, PVC-C, PP-H, PP-Natural, PVDF
• 1. Diaphragm
  1. EPDM, FPM, EPDM-PTFE
• 1. Connection
  1. true union (socket or spigot)
• 1. Standard
  1. DIN, JIS, ANSI

Features

Easy installation and maintenance

• Easily dismountable with thread connection
• Corrosion free due to full plastic housing design
• Optimized air inlet design with low vibration
• Same installation length as market standard valves
• Integrated optical position feedback with easy observation
• Excellent lubrication performance and maintenance free
• Air inlet direction is optional at 90°intervals
• Perfect for installation in limited space

Outstanding safety

• Suspension type diaphragm coupling mechanism to protect diaphragm
• Valve flow passage and pneumatic actuator overpressure design for improved safety
• Optimized flow path profile for efficient closure in high flow rate applications

Excellent flexibility in configuration

• Connection: true union (socket or spigot)
• Connection standard: metric, US, JP
• Diaphragm: EPDM, FPM, EPDM-PTFE
• Valve body: PVC-U, PVC-C, PP-H, PP-Natural, PVDF
• Oil-free options available

Best flow control performance

• Linear flow characteristics for easy control
• Double flow rate due to unique valve flow passage design
• Suitable for media containing a small number of particles and solids

Application

• Landfill leachate treatment
• PV
• PCB
• Electroplate
• LCD
• Semiconductor
• Papermaking
• Mining & metallurgy

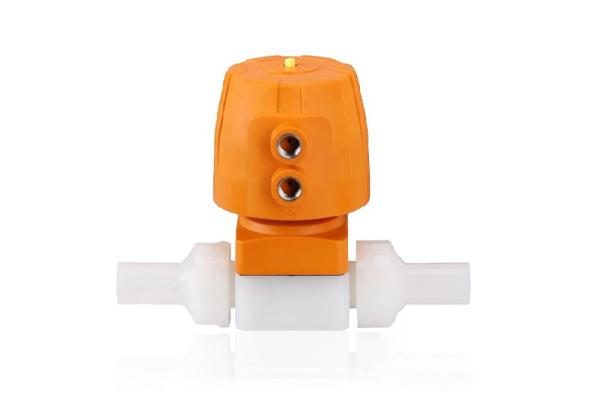

Flow Control Performance Plastic Pneumatic Actuated Diaphragm Valve Images
